DT9000 Fieldbus Master Gateway



 tn_Overview_100215

tn_DT9000M



Product Description

The DT9000 is designed for OEMs who need a small, portable, multi network Fieldbus Master for testing machines and equipment.  DT9000 Fieldbus Master can also be used as a machine or device network controller and be embedded into a machine.

From initial engineering software/hardware development, through prototyping and into production, the DT9000M validates that your integrated industrial protocols are communicating according to your specifications. The product supports most major industrial networks including EtherCAT, Profinet, EthernetIP, Modbus TCP/IP, Modbus RTU, Profibus, DeviceNet, and CANOpen.

With a single common user interface, the DT9000 makes it easy to test multiple protocols without having to develop a different master system for each protocol.  Quick connection to your host PC or laptop, via Ethernet, is easily accomplished and the Diamond Technologies test applications, which are included on the DT9000, greatly simplify the setup and testing of your industrial networks.   Optional Dev Kit including DLL libraries and source code facilitates rapid deployment of automated test sequences.   The DT9000M is an excellent tool to test slave devices or setup a full multi slave fieldbus network.

Features & Benefits

  • Common software interface for testing most major industrial networks
  • Support for EIP, Profinet, Profibus, EtherCAT, Modbus TCP/IP, Modbus RTU, DeviceNet, CANOpen

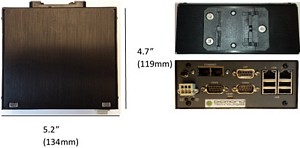

  • Small 5.2″ L x 2.3″W x 4.7″ D easily utilized on the road, in the office, or on the manufacturing floor
  • Din Rail Mountable
  • Industrial Temperature range and wide input power range (9-40VDC)
  • Dual Ethernet support, and network bridge functionality
  • Example source code provided with optional Dev Kit.

Available Models:

Part Number Description
DT9000-M37-ENT DT9000 Embedded Master, Windows Embedded 7, 64GB memory, 2 Ethernet ports, 4 USB connections, Protocol Master Support for EtherNet/IP, EtherCAT, Profinet,  Modbus TCP, Modbus RTU
DT9000-M37-ENTDP DT9000 Embedded Master, Windows Embedded 7, 64GB memory, 2 Ethernet ports, 4 USB connections, Protocol Master Support for EtherNet/IP, EtherCAT, Profinet,  Modbus TCP, Profibus, Modbus RTU
DT9000-M37-ENTDNDP DT9000 Embedded Master, Windows Embedded 7, 64GB memory, 2 Ethernet ports, 4 USB connections, Protocol Master Support for EtherNet/IP, EtherCAT, Profinet,  Modbus TCP, DeviceNet, Profibus, Modbus RTU
DT9000-M37-ENTCO DT9000 Embedded Master, Windows Embedded 7, 64GB memory, 2 Ethernet ports, 4 USB connections, Protocol Master Support for EtherNet/IP, EtherCAT, Profinet,  Modbus TCP, CANopen, Modbus RTU
DT9000-M37-ENTCODP DT9000 Embedded Master, Windows Embedded 7, 64GB memory, 2 Ethernet ports, 4 USB connections, Protocol Master Support for EtherNet/IP, EtherCAT, Profinet,  Modbus TCP, CANopen, Profibus, Modbus RTU
Accessories:
CAB-PB-1M Profibus cable 1M
CAB-DNDT-1M DeviceNet cable 1M
DT9000-SW-100 DT9000 Dev Kit, VB.NET sample test app and source code, DLL interface library and documentation for customer developed applications
