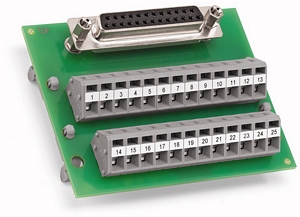

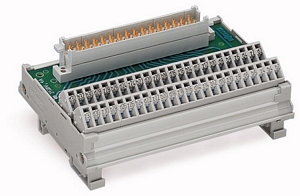

We have a range of interface modules which are used in Automation projects to create a bridge from one connection type to another.   Connection types include DSUB, Ribbon Cable, RJ45, terminal block, etc.   We have a full range of DSUB to terminal block including DSUB9, 15, 25, 50 style connection to 1, 2, and 3 level terminal blocks.  Male and Female connection types are available. Convenient DIN rail carriers or lower cost circuit board designs are also available.

We also have interface modules which add  a circuit or electronic component in between the connection including resistor gates, Diode gates, etc.    Diamond can also design specific circuitry to meet your application needs.

tn_289Series2

Din Rail Mounting Feet

The interface modules are designed to reduce time in wiring and installation.









AVAILABLE MODELS:

Part Number Description
289-102 MODULE PCB
289-103 DIODE GATE MODULE
289-105 DIODE GATE MODULE
289-111 RL MTD DIODE GATE MOD
289-113 RESISTOR GATE W/8
289-121 RL MTD DIODE GATE MOD
289-131 PCB FOR SELF ASSY
289-151 LAMP TEST CIRCUIT MODULE
289-170/000-236  RJ45 JUNCTION MODULE (HORIZONTAL) $
289-170/000-256/PW25-000 JUNCTION MODULE (HORIZONTAL)
289-171/000-236 RJ45 JUNCTION MODULE (VERTICAL) $
289-171/PW25-000 RJ45 JUNCTION MODULE (VERTICAL) $
289-172 RJ-45 X2 on PCB
289-174 INTERFACE MODULE FOR ETHERNET RJ45
289-175 INTERFACE MODULE FOR ETHERNET RJ45
289-176 RJ45 CONNECTOR STRAIGHT 8 DATA,+P,+S
289-177 RJ45 CONNECTOR CROSSOVER 8DATA,+P,+S
289-178 INTERFACE MODULE FOR ETHERNET YCONJK
289-179 INTERFACE MODULE FOR ETHERNET
289-201 INDICATOR MODULE COMMON CATHODE (-)
289-202 INDICATOR MODULE COMMON ANODE (PLUS)
289-332 BIN.RELAISAUSG.12/08TDOV32SWS5
289-408 I.D.C. MODULE-50 PIN
289-422 INTERFACE MOD DIN 41612 VERT 64 POLE
289-425 INTERFACE MOD DIN 41612 32 POLE
289-426 INTERFACE MOD DIN 41612 64 POLE
289-430 INTERFACE MOD DIN 41612 32 POLE VERT
289-431 INTERFACE MOD DIN 41612 64 POLE VERT
289-434 INTERFACE MOD DIN 41612 48 POLE
289-436 INTERFACE MOD DIN 41612 48 POLE
289-441 D-SUB MOD-M-15 PIN
289-444 D-SUB MOD-M-50 PIN
289-446 D-SUB MOD-M-15 PIN
289-449 D-SUB MODULE 50 PIN
289-453 D-SUB MOD-F-37 PIN
289-454 D-SUB MOD-F-50 PIN
289-455 D-SUB MOD-F-9 PIN
289-456 D-SUB MOD-F-15 PIN
289-457 D-SUB MOD-F-25 PIN
289-458 D-SUB MOD-F-37 PIN
289-459 D-SUB MOD-F-50 PIN
289-509 I.D.C. MODULE – 64 PIN
289-510 I.D.C. MODULE – 64 PIN
289-522 INTERFACE MOD DIN 41612 VERT 64 POLE
289-523 INTERFACE MOD DIN41612 HORIZ 64 POLE
289-526 INTERFACE MOD DIN 41612 -64 POLE
289-527 INTERFACE MODULE DIN 41612 – 64 POLE
289-531 INTERFACE MOD DIN 41612 VERT 64 POLE
289-544 50 PIN D-SUB MOD W/MTG CARRIER
289-545 9 PIN D-SUB MOD W/MTG CARRIER
289-547 25 PIN D-SUB MOD W/MTG CARRIER
289-548 37 PIN D-SUB MOD W/MTG CARRIER
289-549/PW25-000 50 PIN D-SUB MOD W/MTG CARRIER $
289-550 D-SUB MOD 9 SOCKET
289-551 D-SUB MOD 15 SOCKET
289-552 D-SUB MOD 25 SOCKET
289-554 D-SUB MOD 50 SOCKET
289-555 D-SUB 9 SOCKET MOD W/MTG CARRIER
289-557 D-SUB MOD-F-25 PIN W/MTG CARRIER
289-558 D-SUB MOD 37 SOCKET
289-575 INTERFACE-MOD SUB-D F-CON 9POL
289-576 INTERFACE-MOD SUB-D F-CON 15POL.
289-577 INTERFACE-MOD SUB-D F-CON 25POL
289-578 INTERFACE-MOD SUB-D F-CON 37POL
289-585 JUNCTION MOD.SUB-D-MALE CONN. 9 POL.
289-586 JUNCTION MOD.SUB-D-MALE CONN.15 POL.
289-587 JUNCTION MOD.SUB-D-MALE CONN.25 POS.
289-588 JNCTN MOD SUB-D M-CONN 37-POS
289-597 INTERF.MODULE SUB-D 44 POLES  (CH)
289-611 INTERFACE MOD 10POS FOR 736 & 737
289-612 INTERFACE MOD 14POS FOR 736 & 737
289-613 INTERFACE MOD 16POS FOR 736
289-614 INTERFACE MOD 20POS FOR 736 & 737
289-615 INTERFACE MOD 26POS FOR 736 & 737
289-616 INTERFACE MOD 34POS FOR 736 & 737
289-617 INTERFACE MOD 40POS FOR 736 & 737
289-618 INTERFACE MOD 50POS
289-619 INTERFACE MOD 64-POS FOR 736 & 737
289-620 MALE D-SUB, 25-PIN W/TRIPLE DECK
289-621 MALE D-SUB, 37-PIN W/TRIPLE DECK
289-623 FEMALE D-SUB, 25-PIN W/TRIPLE DECK
289-624 FEMALE D-SUB, 37-PIN W/TRIPLE DECK__
289-664 JUNCTION MODULE
289-665 MODULE FOR 8 SENSORS PNP LED 24VDC
289-666 MODULE FOR 8 SENSORS NPN LED 24VDC
289-667 JUNCTION MODULE
289-671 MODULE FOR 8 ACTUATORS WITH PE COND.
289-685 INTERF.MOD SIEMENS-SIMATIC 32PL 1WR
289-686 INTERF.MOD SIEMENS-SIMATIC 32PL 3WR
289-707 U-MOD.SUB-HD-BU.44POS/737
289-708 D-SUB-62 PIN-F-/737
289-710 D-SUB-62 PIN-M-/737
289-720 INTERFACE MOD MINI D-SUB HDR 9 POLES
289-721 INTERFACE MOD MINI D-SUB HDR 15POLES
289-722 INTERFACE MOD MINI D-SUB HDR 25POLES
289-723 INTERFACE MOD MINI D-SUB HDR 37POLES
289-725 INTERFACE MOD MINI D-SUB F. 9 POLES
289-726 INTERFACE MOD MINI D-SUB F. 15 POLES
289-728 INTERFACE MOD MINI D-SUB F. 37 POLES
289-822 INTERFACE MODULE W/HD-SUB-D MALE CON
289-907 CONSTANT VOLTAGE SOURCE
289-913 24V DC/DC CONVERTER
289-965 RJ45 INTERFACE MODULE
289-966 RJ45 INTERFACE MODULE W/SHEILD CLAMP
