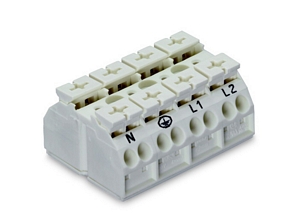

862 Series Chassis Terminal Blockstn_862series

The 862 series chassis terminal blocks come with mounting feet for snap in mounting.  The series accommodates 12-20AWG in 2, 4 and 5 pole block configurations.   The blocks are available in black and white and include hot stamp marking.   Accessory marking can also be added.   Cage Clamp S allows for solid and ferruled wires to be easily push into wire connection or top mounted push buttons can be used to open the clamp for wire insertion.

Request a Catalog

Part Number Description
862-482 ADJACENT JUMPER
862-503 TB 3 POS BLACK W/O MARKING TOP
862-503/PW25-001 BARRIER STRP 0862-0503 1CT CLAMSHELL
862-504/PW25-001 BARRIER STRP 0862-0504 1CT CLAMSHELL
862-504 TB 4 POS BLACK W/OUT MARKING TOP
862-505 TB 5 POS BLACK W/O MARKING TOP
862-505/PW25-001 BARRIER STRP 0862-0505 1CT CLAMSHELL
862-515 TB 5 POS BLACK W/O MARKING SNP 1-3-5
862-525 TB 5 POS BLACK W/O MARKING SNAP 2&4
862-532 TB 2 POS BLACK W/O MARKING SNAP 1
862-533 TB 3 POS BLACK W/O MARKING SNAP 1
862-534 TB 4 POS BLACK W/O MARKING SNAP 1
862-552 TB 2 POS BLACK W/O MARKING TOP
862-562 TB 2 POS BLACK W/O MARKING BOTTOM
862-593 TB 3 POS BLACK W/O MARKING SNAP 1&3
862-594 TB 4 POS BLACK W/O MARKING SNAP 1&4
862-602 TB 2 POS WHITE W/O MARKING TOP
862-603 TB 3 POS WHITE W/O MARKING TOP
862-604 TB 4 POS WHITE W/O MARKING TOP
862-605 TB 5 POS WHITE W/O MARKING TOP
862-615 TB 5 POS WHITE W/O MARKING SNP 1-3-5
862-625 TB 5 POS WHITE W/O MARKING SNAP 2&4
862-632 TB 2 POS WHITE W/O MARKING SNAP 1
862-633 TB 3 POS WHITE W/O MARKING SNAP 1
862-634 TB 4 POS WHITE W/O MARKING SNAP 1
862-652 TB 2 POS WHITE W/O MARKING TOP
862-662 TB 2 POS WHITE W/O MARKING BOTTOM
862-693 TB 3 POS WHITE W/O MARKING SNAP 1&3
862-694 TB 4 POS WHITE W/O MARKING SNAP 1&4
862-1503 TB 3 POS BLACK PE-N-L1 TOP
862-1503/999-950 TB 3 POS BLACK PE-N-L1 W/O GRND CONT
862-1504 TB 4 POS BLACK PE-N-L1-L2 TOP
862-1505 TB 5 POS BLACK PE-N-L1-L2-L3 TOP
862-1515 TB 5 POS BLACK PE-N-L1-L2-L3 SP1-3-5
862-1525 TB 5 POS BLACK PE-N-L1-L2-L3 SNP 2&4
862-1532 TB 2 POS BLACK L1-N SNAP 1
862-1533 TB 3 POS BLACK PE-N-L1 SNAP 1
862-1533/999-950 TB 3 POS BLACK PE-N-L1 SNAP W/O GRND
862-1534 TB 4 POS BLACK PE-N-L1-L2 SNAP 1
862-1552 TB 2 POS BLACK L1-N TOP
862-1562 TB 2 POS BLACK L1-N BOTTOM
862-1593 TB 3 POS BLACK PE-N-L1 SNAP 1&3
862-1594 TB 4 POS BLACK PE-N-L1-L2 SNAP 1&4
862-1603 TB 3 POS WHITE PE-N-L1 TOP
862-1604 TB 4 POS WHITE PE-N-L1-L2 TOP
862-1605 TB 5 POS WHITE PE-N-L1-L2-L3 TOP
862-1615 TB 5 POS WHITE PE-N-L1-L2-L3 SP1-3-5
862-1625 TB 5 POS WHITE PE-N-L1-L2-L3 SNP 2&4
862-1632 TB 2 POS WHITE L1-N SNAP 1
862-1633 TB 3 POS WHITE PE-N-L1 SNAP 1
862-1634 TB 4 POS WHITE PE-N-L1-L2 SNAP 1
862-1652 TB 2 POS WHITE L1-N TOP
862-1662 TB 2 POS WHITE L1-N BOTTOM
862-1693 TB 3 POS WHITE PE-N-L1 SNAP 1&3
862-1694 TB 4 POS WHITE PE-N-L1-L2 SNAP 1&4
862-2503 TB 3 POS BLACK N-PE-L1 TOP
862-2504 TB 4 POS BLACK N-PE-L1-L2 TOP
862-2505 TB 5 POS BLACK L3-N-PE-L1-L2 TOP
862-2515 TB 5 POS BLACK L3-N-PE-L1-L2 SP1-3-5
862-2525 TB 5 POS BLACK L3-N-PE-L1-L2 SNP 2&4
862-2532 TB 2 POS BLACK N-L1 SNAP 1
862-2533 TB 3 POS BLACK N-PE-L1 SNAP 1
862-2534 TB 4 POS BLACK N-PE-L1-L2 SNAP 1
862-2562 TB 2 POS BLACK N-L1 BOTTOM
862-2593 TB 3 POS BLACK N-PE-L1 SNAP 1&3
862-2594 TB 4 POS BLACK N-PE-L1-L2 SNAP 1&4
862-2603 TB 3 POS WHITE N-PE-L1 TOP
862-2604 TB 4 POS WHITE N-PE-L1-L2 TOP
862-2605 TB 5 POS WHITE L3-N-PE-L1-L2 TOP
862-2615 TB 5 POS WHITE L3-N-PE-L1-L2 SP1-3-5
862-2625 TB 5 POS WHITE L3-N-PE-L1-L2 SNP 2&4
862-2633 TB 3 POS WHITE N-PE-L1 SNAP 1
862-2634 TB 4 POS WHITE N-PE-L1-L2 SNAP 1
862-2652 TB 2 POS WHITE N-L1 TOP
862-2662 TB 2 POS WHITE N-L1 BOTTOM
862-2693 TB 3 POS WHITE N-PE-L1 SNAP 1&3
862-2694 TB 4 POS WHITE N-PE-L1-L2 SNAP 1&4
862-8503 TB 3 POS BLACK N-PE-L1 TOP W/ GROUND
862-8504 TB 4 POS BLACK N-PE-L1-L2 TOP W/ GRD
862-8505 TB 5 POS BLACK L3-N-PE-L1-L2 TOP
862-8515 TB 5 POS BLK L3-N-PE-L1-L2 S1-3-5/GD
862-8525 TB 5 POS BLACK L3-N-PE-L1-L2 S2&4/GD
862-8533 TB 3 POS BLACK N-PE-L1 SNAP 1 W/GRND
862-8534 TB 4 POS BLACK N-PE-L1-L2 SNP1 W/GRD
862-8593 TB 3 POS BLACK N-PE-L1 SNAP1&3 W/GRD
862-8594 TB 4 POS BLACK N-PE-L1-L2 S1&4 W/GRD
862-8603 TB 3 POS WHITE N-PE-L1 TOP W/ GROUND
862-8604 TB 4 POS WHITE N-PE-L1-L2 TOP W/ GRD
862-8605 TB 5 POS WHITE L3-N-PE-L1-L2 TOP
862-8615 TB 5 POS WHT L3-N-PE-L1-L2 S1-3-5/GD
862-8625 TB 5 POS WHITE L3-N-PE-L1-L2 S2&4/GD
862-8633 TB 3 POS WHITE N-PE-L1 SNAP 1 W/GRND
862-8634 TB 4 POS WHITE N-PE-L1-L2 SNP1 W/GRD
862-8693 TB 3 POS WHITE N-PE-L1 SNAP1&3 W/GRD
862-8694 TB 4 POS WHITE N-PE-L1-L2 S1&4 W/GRD
862-9503 TB 3 POS BLACK PE-N-L1 TOP W/ GROUND
862-9504 TB 4 POS BLACK PE-N-L1-L2 TOP W/ GRD
862-9505 TB 5 POS BLACK PE-N-L1-L2-L3 TOP
862-9515 TB 5 POS BLK PE-N-L1-L2-L3 S1-3-5/GD
862-9525 TB 5 POS BLACK PE-N-L1-L2-L3 S2&4/GD
862-9533 TB 3 POS BLACK PE-N-L1 SNAP 1 W/GRND
862-9534 TB 4 POS BLACK PE-N-L1-L2 SNP1 W/GRD
862-9593 TB 3 POS BLACK PE-N-L1 SNAP1&3 W/GRD
862-9594 TB 4 POS BLACK PE-N-L1-L2 S1&4 W/GRD
862-9603 TB 3 POS WHITE PE-N-L1 TOP W/ GROUND
862-9604 TB 4 POS WHITE PE-N-L1-L2 TOP W/ GRD
862-9605 TB 5 POS WHITE PE-N-L1-L2-L3 TOP
862-9615 TB 5 POS WHT PE-N-L1-L2-L3 S1-3-5/GD
862-9625 TB 5 POS WHITE PE-N-L1-L2-L3 S2&4/GD
862-9633 TB 3 POS WHITE PE-N-L1 SNAP 1 W/GRND
862-9634 TB 4 POS WHITE PE-N-L1-L2 SNP1 W/GRD
862-9693 TB 3 POS WHITE PE-N-L1 SNAP1&3 W/GRD
862-9694 TB 4 POS WHITE PE-N-L1-L2 S1&4 W/GRD
