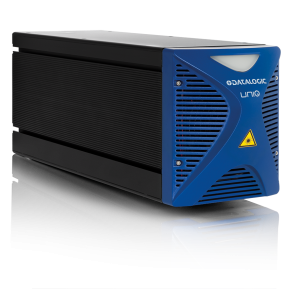

UniQ™
Product Description
UniQ™ is the first ultra-compact “ALL-IN-ONE” laser marking system based on fiber laser technology. Thanks to compact dimensions, the rugged IP54 grade housing, the complete absence of an external controller and fiber optic delivery cable, UniQ™ laser markers are truly unique.
With 15W of optical laser power, the UniQ™ laser marker offers flexibility in marking on a wide spectrum of materials. The ultra-compact design and the high efficiency, low noise, cooling system allows for easy integration even in tight spaces and complex environments. UniQ™ laser markers are powered by the latest version of Lighter, Datalogic’s laser marking software suite, and offer maximum customer ease of use and great flexibility in system integration.
Features & Benefits
- High reliability Full Fiber Laser Technology
- Ultra compact, “ALL-IN-ONE” design: No external controller or power supply needed
- Rugged IP54 rated housing
- Compatible with market standard M39 and M85 f-theta lenses
- Datalogic’s Standard I/O interface
- No fiber delivery constrains, no fiber length or bending radius limitations
AVAILABLE MODELS:
| Lenses | Description |
| 985300029 | F-Theta Lens F = 100mm ØEXT59mm (SMALL) M39 – IR1064nm |
| 985300014 | F-Theta Lens F = 100mm ØEXT90mm (LARGE) M85 – IR1064nm |
| 985300011 | F-Theta Lens F = 160mm ØEXT48mm (SMALL) M39 – IR1064nm |
| 985300012 | F-Theta Lens F = 160mm ØEXT90mm (LARGE) M85 – IR1064nm |
| 985300013 | F-Theta Lens F = 254mm ØEXT48mm (SMALL) M39 – IR1064nm |
| 985300018 | F-Theta Lens F = 254 mm ØEXT120 mm (LARGE) M85 – IR1064nm |
| 985300019 | F-Theta Lens F = 330 mm ØEXT120 mm (LARGE) M85 – IR1064nm |
| 985300020 | F-Theta Lens F = 420 mm ØEXT120 mm (LARGE) M85 – IR1064nm |
| Adapters | Description |
| 985300021 | Adapter for M39 LENS (“small”) for all systems |
| 985300022 | Adapter for M85 LENS (“large”) |
| Accessories | Description |
| 985330031 | CONTROL BOX FOR AREX // UNIQ // NEW VLASE 2 meters |
| 985340035 | FUME EXTRACTOR FOR LASER APPLICATION SIZE SMALL – LAS 160 |
| 985350032 | Sub-D 25 Pins – to free leads cable 3M |
| 985330027 | STARTER KIT for Marking on the fly (include photocell and encoder) |
