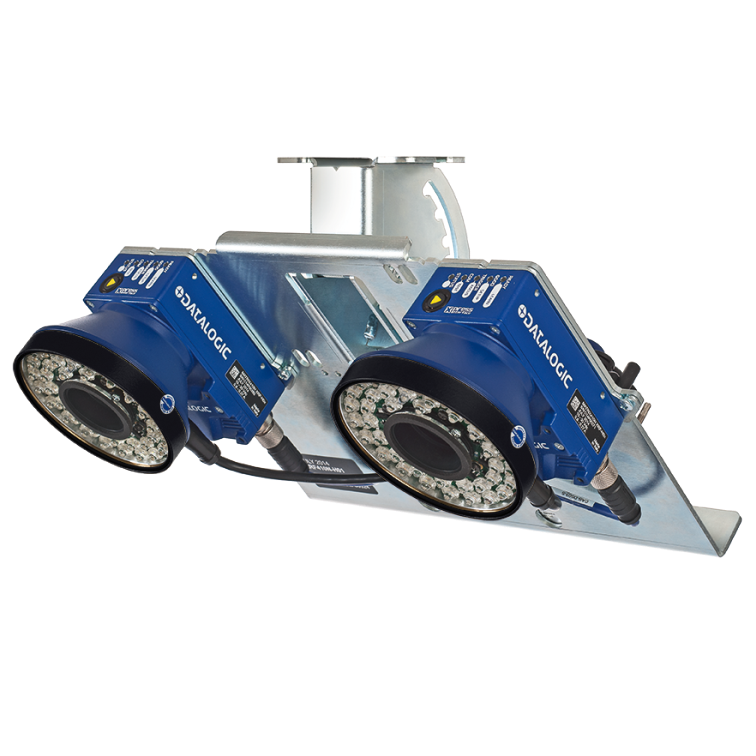

XRF410N™

The XRF410N™, named for its extended Reading Field, is a solution based on the new Matrix 410N™ platform for material handling and
sortation in the logistics industry. XRF410N™ is designed and built for a broad variety of material handling applications with transportation speeds up to 2.2 m/s (433 fpm) for medium sized objects, with typical scanning depths of 400 mm (15.7 in.). The XRF410N™ is the perfect solution for e-commerce small object automated order fulfillment systems or postal logistics flats sortation applications.

Features & Benefits

• The XRF410N™ is a fully functional, Matrix solution that is pre-assembled and configured at the factory, resulting in easy, fast installation on-site.
• XRF410N™ runs the most updated Datalogic decoding engine, fully capable of successfully scan hard-to-read, damaged or poor quality codes
• The CBX500 connection box can be optionally equipped with a display and a memory block for automatic reader replacement in case of failure. The patented Green Spot indicates a good read for easy validation.
• No technical analysis is required. Just code dimension, conveyor width and speed are necessary to determine the correct version of XRF410N™…and it is just a single part number!
• Through the patent pending PackTrack 2D, XRF410N is perfect for high speed sortation with short intra-cell gaps (as with cross-belt, split-trays)
• XRF410N™ is equipped with the new DL.CODE software, providing even more ease of use through live image display, graphical configurations, embedded reading statistics and diagnostics
