Analog Input and Output Modules
O

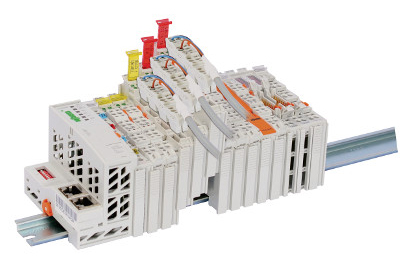

ur Analog Input and Output Modules provide a very broad set of solutions for OEM equipment builders and end users. The I/O is available in the 750 series as typically 12mm wide modules supporting a variety of requirements including 0-10V, 4-20mA, +/- 10V, 0-20mA, Thermocouple, RTD, Single Ended and Differential input. Our Analog values can also support up to 16 bit precision. 767 series are IP67 format with M12 and M8 connections for enclosure-less mounting. We provide Analog I/O in as small as 2 channels per module. This modularity allows the user to use just what they need thus reducing cost. With built in Diagnostics our Analog I/O sets the standard in functionality and performance.
Diamond has significant technical expertise in specifying, installing and commissioning I/O systems and can provide assistance to ensure your project is successful.
AVAILABLE MODELS:
| 750-452 | 2 CHAN IN ANALOG 0-20mA |
| 750-452/000-200 | 2 AI 0-20mA Diff/Status. |
| 750-453 | 4 CHAN IN ANALOG 0-20mA |
| 750-454 | 2 CHAN IN ANALOG 4-20mA |
| 750-454/000-200 | 2AI 4-20mA Diff/Status |
| 750-454/025-000 | 2AI 4-20mA Diff./T |
| 750-455 | 4 CHAN IN ANALOG 4-20mA |
| 750-455/025-000 | 4AI 4-20mA S.E./T |
| 750-456 | 2 CHAN IN ANALOG +/-10VDC |
| 750-456/000-200 | 2CH Analog input +/-10VDC, Siemens |
| 750-457 | 4 CHAN IN ANALOG +/-10VDC |
| 750-457/025-000 | 4 CHAN IN ANALOG +/-10VDC EXTD TEMP |
| 750-459 | 4 CHAN IN ANALOG 0-10V |
| 750-460 | 4AI PT100/ RTD |
| 750-460/000-003 | 4AI PT1000/ RTD |
| 750-461 | 2 CHANNEL IN ANALOG PT100 |
| 750-461/000-002 | 2 CHANNEL INPUT MODULE |
| 750-461/000-003 | 2AI PT1000 (RTD) |
| 750-461/000-004 | 2AI Ni100 |
| 750-461/000-005 | 2AI NI1000 (RTD) |
| 750-461/000-007 | 2AI RESISTANCE MEAS. 10 – 5K OHM |
| 750-461/000-200 | 2AI PT100 (RTD) SIEM.F. |
| 750-461/003-000 | 2AI PT 100/ RTD/ ADJUSTABLE |
| 750-461/020-000 | 2AI NTC 20K |
| 750-461/025-000 | 2AI PT100 RTD EXTENDED TEMP RANGE |
| 750-463 | 2 CHAN IN ANALOG TYPE C |
| 750-464 | 2-/4-CHAN ANALOG INPUT MOD RTD |
| 750-464/020-000 | 2-/4-CHAN ANALOG INPUT MOD NTC |
| 750-465 | 2 CHAN IN ANALOG 0-20mA S |
| 750-465/000-200 | 2 CH ANALOG IN 0-20mA S, w/STATUS |
| 750-466 | 2 CHAN IN ANALOG 4-20mA S |
| 750-466/000-200 | 2AI 4-20MA SINGLE ENDED SIEM.F. |
| 750-466/025-000 | 2AI 4-20mA S.E./T |
| 750-466/025-000 | 2AI 4-20mA S.E./T |
| 750-467 | 2 CHAN IN ANALOG 0-10V S |
| 750-467/000-200 | 2AI 0-10V DC S.E. Siemens |
| 750-468 | 4 CHAN IN ANALOG 0-10V S |
| 750-468/025-000 | 4AI 0-10V DC S.E./T |
| 750-469 | TYPE K THERMOCOUPLE, W/D |
| 750-469/000-001 | TYPE S THERMOCOUPLE, W/D |
| 750-469/000-002 | TYPE T THERMOCOUPLE, W/D |
| 750-469/000-003 | INPUT, 2CH, +/-120mV |
| 750-469/000-006 | TYPE J THERMOCOUPLE, W/D |
| 750-469/000-008 | TYPE E THERMOCOUPLE, W/D |
| 750-469/000-012 | 2AI Thermocouple L Diagn. |
| 750-469/000-200 | 2AI THERMOCOUPLE SIEMENS DIAGN. |
| 750-469/000-206 | 2AI THERMOCOUPLE J DIAGN. STATUS |
| 750-469/003-000 | THERMOCOUPLE, TYPE K / ADJUSTABLE |
| 750-470 | 2AI 0-20mA S.E./ s.c.protec. |
| 750-472 | 2 CHAN 0-20mA 16BIT |
| 750-474 | 2 CHAN 4-20mA 16BIT |
| 750-474/000-200 | 2AI 4-20MA 16BIT SIEM.F.S5 460/465 |
| 750-474/005-000 | 2 CHAN 4-20MA 16BIT 60HZ FILTER |
| 750-475 | 2 CHAN ANALOG INPUT 0-1AMP FOR CT’S |
| 750-475/020-000 | 2AI 0-5A AC/DC Diff. |
| 750-476 | 2 CHAN +-10V 16 BIT SINGLE END |
| 750-476/000-200 | 2AI +/-10V DC 16Bit S.E. S5-466 |
| 750-476/005-000 | 2CH +-10V 16BIT 60HZ FILTER |
| 750-477 | 2AI 0-10V AC/DC DIFF. |
| 750-478 | 2 CHAN 0-10V 16 BIT SINGLE END |
| 750-478/005-000 | 2CH 0-10V 16BIT 60 HZ FILTER |
| 750-479 | 2CH IN,+/-10V, 13BIT,W/ISOLAT CH |
| 750-481/003-000 | 2AI RTD EEx i |
| 750-482 | 2AI 4-20mA HART PROTOCOL |
| 750-483 | 2AI 0-30V DC DIFF./MEASUR.INP. |
| 750-484 | 2AI 4-20mA HART PROTOCAL Eexi |
| 750-485 | 2AI 4-20MA EX I |
| 750-487/003-000 | 2CH AI THERMO EXI |
| 750-491 | 1CH RESISTANCE MEASURING BRIDGE |
| 750-491 | 1CH RESISTANCE MEASURING BRIDGE |
| 750-492 | 2AI 4-20MA DIFF. ISOLATED |
| 750-550 | 2 CHAN OUT ANALOG 0-10VDC |
| 750-550/000-200 | 2AO +/-10 V DC Status |
| 750-552 | 2 CHAN OUT ANALOG 0-20mA |
| 750-552/000-200 | 2AO 0-20mA Siemens |
| 750-552/025-000 | 2AO 0-20mA/T |
| 750-554 | 2 CHAN OUT ANALOG 4-20mA |
| 750-554/000-200 | 2AO 4-20mA Status |
| 750-554/025-000 | 2 CH AO 4-20 /T |
| 750-555 | 4 CHAN OUT ANALOG 4-20mA |
| 750-556 | 2CHAN OUT ANALOG +/-10VDC |
| 750-556/000-200 | 2AO +/-10V DC Siemens |
| 750-557 | 4 CHAN OUT ANALOG +/-10VDC |
| 750-559 | 4AO 0-10V DC |
| 750-559/025-000 | 4Ao 0-10V DC /TT |
| 750-560 | 2AO 0-10V DC/ 8 BIT/ 100MW/ 24V |
| 750-562 | 2AO 0/+-10V DC 16Bit |
| 750-563 | 2AO 0/4-20mA / 6-18V DC 16Bit |
| 750-585 | 2AO 0-20MA EX I |
| 750-586 | 2AO 4-20MA EX I |
| 753-452 | 2AI 0-20mA Diff. |
| 753-453 | 4AI 0-20mA S.E. |
| 753-454 | 2AI 4-20mA Diff. |
| 753-455 | 4AI 4-20mA S.E. |
| 753-456 | 2AI +/-10V DC |
| 753-457 | 4AI +/-10V DC S.E. |
| 753-461 | 2AI PT100 (RTD) |
| 753-461/003-000 | 2AI PT100/RTD ADJUSTABLE |
| 753-465 | 2AI 0-20mA S.E. |
| 753-466 | 2AI 4-20mA S.E. |
| 753-467 | 2AI 0-10V DC S.E. |
| 753-469 | 2AI Thermocouple K Diagn. |
| 753-472 | 2AI 0-20mA 16Bit S.E. |
| 753-474 | 2AI 4-20mA 16Bit S.E. |
| 753-475 | 2AI 0-1A AC/DC, DIFFERENTIAL INPUT |
| 753-476 | 2AI +/-10V DC 16Bit S.E. |
| 753-477 | 2AI 0-10V AC/DC DIFF. |
| 753-478 | 2AI 0-10V DC 16Bit S.E. |
| 753-479 | 2CH IN,+/-10V, 13BIT,W/ISOLAT CH |
| 753-480 | 2AI 0-20mA, DIFFERENTIAL MESSAGING |
| 753-482 | 2AI 4-20mA HART |
| 753-483 | 2AI 0-30V DC DIFF./MEASUR.INP. |
| 753-550 | 2AO 0-10V DC |
| 753-552 | 2AO 0-20mA |
| 753-554 | 2AO 4-20mA |
| 753-556 | 2AO +/-10V DC |
| 753-557 | 4AO +/-10V DC |
| 753-559 | 4AO 0-10V DC |
| 767-6401 | SPDWY 4AI V/I CONFIGURABLE |
| 767-6402 | SPDWY 4AI RTD CONFIGURABLE |
| 767-6403 | SPDWY 4AI TC |
| 767-7401 | SPDWY 4AO V/I CONFIGURABLE |
