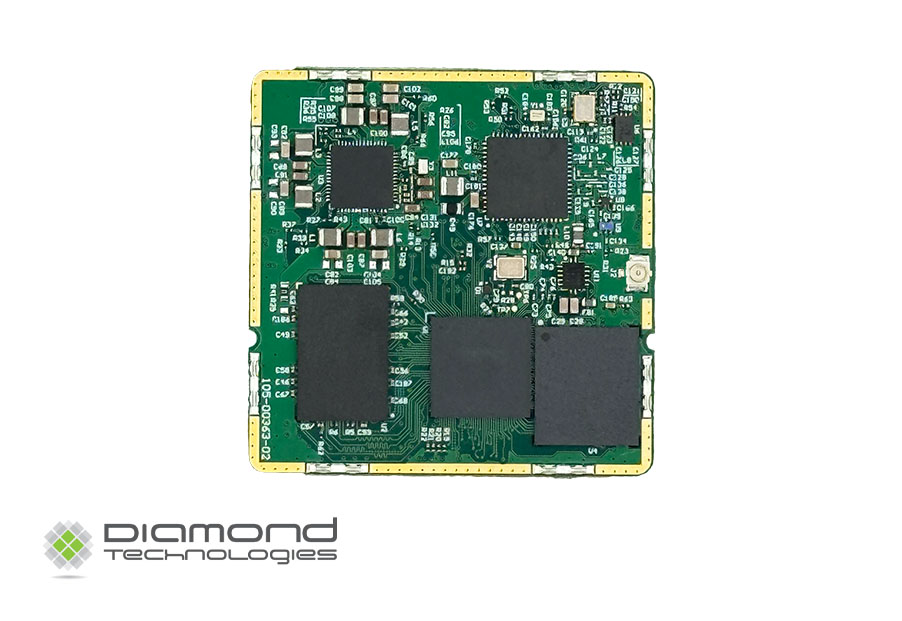

The DEC i.MX 91 computing module delivers reliable performance, low power consumption, and secure connectivity in a compact, industry-standard OSM form factor. Built using the NXP i.MX 91 processor, it provides an ideal foundation for embedded systems that require consistent performance, long-term availability, and a clear path forward to next-generation designs.
Driven by an Arm® Cortex®-A55 core running up to 1.4 GHz and integrated Arm® Cortex®-M33 co-processor, the DEC i.MX 91 computing module supports efficient Linux-based processing with dependable real-time control. It offers a rich set of interfaces, including Ethernet, USB, UART, SPI, and I²C to enable seamless integration into industrial, commercial, and IoT applications.
The DEC i.MX 91 computing module’s OSM form factor gives designers a straightforward upgrade path to higher performance and on-device AI capabilities when needed—without changing their carrier design. This continuity allows OEMs to scale products easily while maintaining a consistent hardware and software foundation.
Designed, engineered, and supported in the U.S., DTI’s i.MX 91 Computing Module combines long-term availability with nationwide technical support, helping developers build connected, cost-effective embedded products that last.
Key Features:
- Single Arm® Cortex® -A55 core for efficient application performance
- Integrated Arm® Cortex® -M33 for secure real-time control
- Compact, low-power design ideal for fanless and space-limited systems
- Industry standard OSM form factor
Processor Options
- NXP i.MX 91 processor with 1 Arm® Cortex®-A55 core running up to 1.4 GHz
- Arm® Cortex®-M33 core running up to 250 MHz
Embedded Memory
- Up to 2GB of 16-bit wide LPDDR4X memory
- eMMC 5.1, configurable
Network Connectivity
- Wi-Fi 6 (802.11ax) 1×1 Dual-Band
- Bluetooth/BLE 5.4
- 802.15.4 Tri-radio for Thread & Matter
- Dual Gigabit Ethernet RGMII Interfaces: AVB and IEEE 1588, 1 with TSN
USB
- 2x USB 2.0 OTG
Display
- 24-bit parallel RGB
Camera
- 8-bit parallel YUV/RGB
Audio
- Up to 7 I2S TDM (32-bit @ 768KHz)
- 3 synchronous audio interfaces (SAI)
- S/PDIF input and output
- Up to 8 Channel Pulse Density Modulation (PDM) input
Serial I/O
- Up to 8 UART interfaces up to 5Mbps
- Up to 6 I2C interfaces
- Up to 5 SPI interfaces operating as either master or slave
- Up to 2 I3C interfaces
- Up to 2 CAN FD interfaces
GPIO
- Up to 64 multiplexed GPIOs supporting various peripherals such as PWMs, SDIO, UART, SPI, and I2C
RTC
- On-board ultra-low power real-time clock (RTC)
Debug
- JTAG support
Mechanical
- OSM-L Form Factor
- Dimensions: 45mm x 45mm
- Weight: 11g
Compliance
- RoHS Compliant
- Reach Compliant
Seamless Development with Expert Support
Gain full access to technical documentation, expert support, and premium engineering services for your Diamond Technologies Computing Modules. Our sister company, Beacon EmbeddedWorks provides a robust Technical Support website where you can find comprehensive resources, including software, documentation, and a technical forum.
Visit: diamondt.com/modulesupport to get started.
Comprehensive Support Tailored To Your Needs
For customers with an annual usage of 1,000+ units, premium services are available for a fee, including BOM management, dedicated project support, inventory services, enhanced reporting, and advanced troubleshooting.
To get a quote, call 978-461-1140 or email: info@diamondt.com
The comprehensive DEC i.MX 91 Development Kit includes everything you need to jumpstart your product development:
- DEC i.MX 91 embedded computing module
- Audio & Network Jacks
- Cables
- All necessary Software & BSP’s
