Encoders

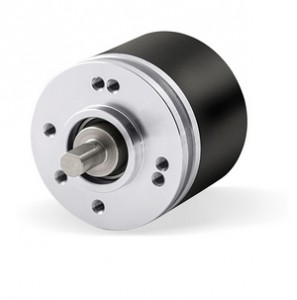

Encoderstn_ENC41-S06

The Datalogic Series of encoders is the premier industrial line, recommended for its wide range of models, price/performance ratio, high resolution and programmable version. The typical applications for this encoder can be found in motion control, automated machinery, and conveyor lines.

Features & Benefits

  • Aluminium anticorodal metal case Ø58 mm
  • Hollow shaft Ø14, 15 mm, or solid shaft Ø6, 10 mm
  • Resolution from 500 to 10000 PPR and Programmable version
  • M12, M23, or 1.5m cable connection
  • AB0 and /A/B/0 output signals
  • Smart Push-Pull & Line Driver output
  • Power supply 5 – 30 Vdc

Applications

  • Motion control
  • Automated machinery
  • Conveyor lines

ENC41 Family

Ordering Codes Description
95B080070 ENC41-H06-0100-C15
95B080080 ENC41-H06-0360-C15
95B080090 ENC41-H06-0500-C15
95B080100 ENC41-H06-1000-C15
95B080110 ENC41-H06-1024-C15
95B080120 ENC41-H06-2048-C15
95B080130 ENC41-H06-4096-C15
95B080000 ENC41-S06-0100-C15
95B080010 ENC41-S06-0360-C15
95B080020 ENC41-S06-0500-C15
95B080030 ENC41-S06-1000-C15
95B080040 ENC41-S06-1024-C15
95B080050 ENC41-S06-2048-C15
95B080060 ENC41-S06-4096-C15

ENC58 Family

Ordering Codes Description
95B080510 ENC58-H14-0500-C15
95B080520 ENC58-H14-1000-C15
95B080530 ENC58-H14-1024-C15
95B080540 ENC58-H14-2000-C15
95B080550 ENC58-H14-2048-C15
95B081550 ENC58-H14-2500-C15
95B080560 ENC58-H14-5000-C15
95B080570 ENC58-H14-10000-C15
95B080660 ENC58-H14-0500-M12
95B080670 ENC58-H14-1000-M12
95B080680 ENC58-H14-1024-M12
95B080690 ENC58-H14-2000-M12
95B080700 ENC58-H14-2048-M12
95B081570 ENC58-H14-2500-M12
95B080710 ENC58-H14-5000-M12
95B080720 ENC58-H14-10000-M12
95B080580 ENC58-H14-0500-M23
95B080590 ENC58-H14-1000-M23
95B080600 ENC58-H14-1024-M23
95B080610 ENC58-H14-2000-M23
95B080620 ENC58-H14-2048-M23
95B081560 ENC58-H14-2500-M23
95B080630 ENC58-H14-5000-M23
95B080640 ENC58-H14-10000-M23
95B080650 ENC58-H14-PROG-M23
95B080740 ENC58-H15-0500-C15
95B080750 ENC58-H15-1000-C15
95B080760 ENC58-H15-1024-C15
95B080770 ENC58-H15-2000-C15
95B080780 ENC58-H15-2048-C15
95B081580 ENC58-H15-2500-C15
95B080790 ENC58-H15-5000-C15
95B080800 ENC58-H15-10000-C15
95B080890 ENC58-H15-0500-M12
95B080900 ENC58-H15-1000-M12
95B080910 ENC58-H15-1024-M12
95B080920 ENC58-H15-2000-M12
95B080930 ENC58-H15-2048-M12
95B081600 ENC58-H15-2500-M12
95B080940 ENC58-H15-5000-M12
95B080950 ENC58-H15-10000-M12
95B080810 ENC58-H15-0500-M23
95B080820 ENC58-H15-1000-M23
95B080830 ENC58-H15-1024-M23
95B080840 ENC58-H15-2000-M23
95B080850 ENC58-H15-2048-M23
95B081590 ENC58-H15-2500-M23
95B080860 ENC58-H15-5000-M23
95B080870 ENC58-H15-10000-M23
95B080880 ENC58-H15-PROG-M23
95B080140 ENC58-S06-0500-C15
95B080150 ENC58-S06-1000-C15
95B080160 ENC58-S06-1024-C15
95B080170 ENC58-S06-2000-C15
95B080180 ENC58-S06-2048-C15
95B081500 ENC58-S06-2500-C15
95B080190 ENC58-S06-5000-C15
95B080200 ENC58-S06-10000-C15
95B080210 ENC58-S06-0500-M23
95B080220 ENC58-S06-1000-M23
95B080230 ENC58-S06-1024-M23
95B080240 ENC58-S06-2000-M23
95B080250 ENC58-S06-2048-M23
95B081510 ENC58-S06-2500-M23
95B080260 ENC58-S06-5000-M23
95B080270 ENC58-S06-10000-M23
95B080280 ENC58-S10-0500-C15
95B080290 ENC58-S10-1000-C15
95B080300 ENC58-S10-1024-C15
95B080310 ENC58-S10-2000-C15
95B080320 ENC58-S10-2048-C15
95B081520 ENC58-S10-2500-C15
95B080330 ENC58-S10-5000-C15
95B080340 ENC58-S10-10000-C15
95B080430 ENC58-S10-0500-M12
95B080440 ENC58-S10-1000-M12
95B080450 ENC58-S10-1024-M12
95B080460 ENC58-S10-2000-M12
95B080470 ENC58-S10-2048-M12
95B081540 ENC58-S10-2500-M12
95B080480 ENC58-S10-5000-M12
95B080490 ENC58-S10-10000-M12
95B080350 ENC58-S10-0500-M23
95B080360 ENC58-S10-1000-M23
95B080370 ENC58-S10-1024-M23
95B080380 ENC58-S10-2000-M23
95B080390 ENC58-S10-2048-M23
95B081530 ENC58-S10-2500-M23
95B080400 ENC58-S10-5000-M23
95B080410 ENC58-S10-10000-M23
95B080420 ENC58-S10-PROG-M23
