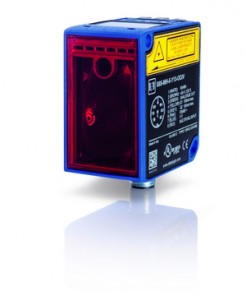

Distance Sensorstn_S85_HR

Datalogic’s innovative line of LASER distance sensors based on Time of Flight technology. The series can perform high-precision and long distance measurement without the use of a prismatic reflector, as well as background and foreground suppression functions.

Features & Benefits

  • Time of Flight technology
  • Class 2, visible red LASER for an easy alignment with the target
  • Distance measurement ranging up to 100m
  • Up to 1 mm resolution, 7 mm accuracy, 1 mm repeatability
  • 4-20 mA or 0-10 V scalable analog output and digital outputs
  • RS485 serial interface in the advanced model
  • Standard M12 connector
  • IP67 industrial housing

Applications

  • Automated warehousing
  • Processing and Packaging machinery
  • Industrial vehicles
  • Automotive

S80 Family

Ordering Codes Description
951501080 S80-MH-5-Y09-PPIZ DISTANCE 4-20mA RS485
951501010 S80-MH-5-Y09-NNIZ DISTANCE 4-20mA RS485
951501020 S80-MH-5-Y19-PPIZ LONG RANGE DIST.SENSOR
951501030 S80-MH-5-Y19-NNIZ LONG RANGE DIST.SENSOR
951501040 S80-MH-5-Y29-PPIZ LONG RANGE DIST.SENSOR
951501050 S80-MH-5-Y29-NNIZ LONG RANGE DIST.SENSOR
951501060 S80-MH-5-YL09-PPIZ DISTANCE 7M RS485
951501070 S80-MH-5-YL09-NNIZ DISTANCE 7M RS485

S81 Family

Ordering Codes Description
951551000 S81-PL-5-M03-NNC BGS. SENS. NPN AL-OUT
951551110 S81-PL-5-M03-PPC BGS. SENS. PNP AL-OUT
951551120 S81-PL-5-Y03-NNV DIST.SENS.NPN 0-10V
951551030 S81-PL-5-Y03-PPV DIST.SENS.PNP 0-10V
951551040 S81-PL-5-Y03-PPVK SCALABLE ANALOGUE OUTPUT

S85 Family

Ordering Codes Description
951511010 S85-MH-5-Y03-OOV TOF DISTANCE 10M 0-10V
951511030 S85-MH-5-Y03-OOI TOF DISTANCE 10M 4-20MA
951511040 S85-MH-5-Y13-OOY TOF DISTANCE 20M RS485
951511020 S85-MH-5-Y13-OOIVY TOF 20M AN-OUT RS485
