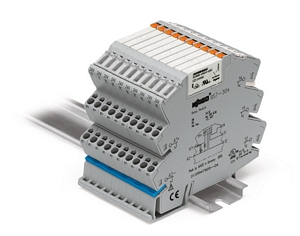

The 859 and 857 are some of our newest Relay and Optocoupler modules. The 859 series is a terminal block line of relay and optocoupler modules.  The relays and optocouplers are embedded into the terminal blocks, providing a DIN rail based relay/optocoupler in a 6mm wide housing. This reduced size housing saves panel space. The 857 provides the same 6mm wide DIN rail mountable module with a removable relay/optocoupler.  This allows for fast field replacement.

Modules are available to meet a wide range of technical requirements including:

  • 5 – 230 VDC
  • 12 – 230 VAC
  • 50mA – 5A continuous current
  • Wide range or module functions

The modules can be easily connected together and jumpered using a full line of single piece plug-in style jumpers.  The modules also utilize our cage clamp connection system for trouble free electrical connections, faster wiring, and elimination of the need for wire tightening.



AVAILABLE MODELS:

Part Number Description
857-102 RELAY BASE ONLY FOR 5V AC/DC
857-103 RELAY BASE ONLY FOR 12V AC/DC
857-104 RELAY BASE ONLY FOR 24V DC
857-107 RELAY BASE ONLY FOR 115V AC/DC
857-108 RELAY BASE ONLY FOR 230V AC/DC
857-152 RELAY 5MM 24VDC 1CO
857-153 RELAY 5MM 24VDC 1CO AU
857-155 PLUGGABLE MINI RELAY SWITCH DC   60V
857-157 PLUGGABLE MINI RELAY SWITCH DC   60V
857-161 SOLID STATE RELAY 24VDC   2A,OPTOCOUPL
857-162 SOLID STATE RELAYS 60VDC   2A,OPTOCOUP
857-164 SOLID STATE RELAYS 24VDC   100mA,OPTOC
857-165 SOLID STATE RELAYS 60VDC   100mA,OPTOC
857-167 SOLID STATE RELAYS 24VDC   1A,OPTOCOUP
857-168 SOLID STATE RELAYS 60VDC   1A.OPTOCOUP
857-303 ELECTRICAL TRM BLK DC 12V, 10MA
857-304/PW25-000 RELAY 24V DC, 6A/250V BULK BUY
857-304 RELAY 24V DC, 6A/250V
857-305 ELECTRICAL TRM BLK DC 6mm/12VCD   IU
857-306 ELECTRICAL TRM BLK DC 6MM/60VDC   1U
857-307 MINI SWITCH RELAY TRM BLK   110VDC/1U
857-308 MINI SWITCH RELAY TRM BLK   220VDC/1U
857-314 ELEC TRM BLK W/MINI SWITCH   RELAY GRY
857-317 ELECTRICAL TRM BLK W/RELAY
857-318 RELAY SWITCH .6MM/220VDC 1U   5MYAU
857-353  ELECTRICAL TRM BLK UC 12V, 8mA
857-354 ELECTRICAL TRM BLK UC 24V, 8mA
857-357 RELAY 120V AC, 6A/250V
857-357/PW25-000 RELAY 120V AC, 6A/250V BULK BUY
857-358 ELECTRICAL TRM BLK UC 230V,   3.5mA
857-364 TRM BLK.W/MINI SWITCH RELAY   6MM/240C
857-367 ELECTRONIC TRM BLK W/MINI RELAY   GRAY
857-368 ELECTRONIC TRM BLK W/MINI RELAY   GRAY
857-704 SS RELAY-24VDCin;0.1A/48V DC   OUT
857-707 SS RELAY-115VAC/DCin;0.1A/48V   DC OUT
857-708 SS RELAY-230VAC/DCin;0.1A/48V   DC OUT
857-714 SS RELAY-24VDCin;1A/230V AC OUT
857-717 SS RELAY-115V AC/DCin;1A/230V   AC OUT
857-718 SS RELAY-230V AC/DCin;1A/230V   AC OUT
857-724 SS RELAY-24VDCin;2A/24V DC OUT
857-727 SS RELAY-115 AC/DCin;2A/24V DC   OUT
857-728 SS RELAY-230V AC/DCin;2A/24V DC   OUT
859-110 6MM TB MOUNT GREY
859-302 RELAY TRM BLK 5VDC
859-303 RELAY TRM BLK 12VDC
859-304 RELAY TERM. BLOCK, 24VDC
859-305 RELAY TRM BLK 48VDC 1U
859-306 RELAY TRM BLK 60VDC 1U
859-307 RELAY TRM BLK 115VDC 1U
859-308 RELAY TRM BLK 220VDC 1U
859-314 RELAY TRM BLK 24VDC 1U W/AU
859-317 RELAY TRM BLK 115VDC 1U W/AU
859-318 RELAY, 220VDC, 1 CHANGEOVER
859-353 RELAY CLAMP 12VAC/DC 1U
859-354 RELAY TRM BLK 24VAC/DC 1U
859-355 RELAY TRM BLK 48VAC/DC 1U
859-357 RELAY TRM BLK 120 VAC
859-358 RELAY TRM BLK 230VAC 1U
859-359 RELAY TRM BLK 230VAC 1U W/AU
859-360 RELAY TRM BLK 115 VAC W/ AU   FLASH
859-367 RELAY, 115VAC, 1 CHANGEOVER
859-368 RELAY TRM BLK 230VAC 1U W/SCHA
859-384 SWITCHING RELAY CENTER   MARK/1U/48VDC
859-385 RELAY TRM BLK 110VDC
859-391 RELAY TRM BLK 115VDC +/-30% 1U   3A
859-392 RELAY TRM BLK 16.8-30VDC 1U   5MYAU
859-393 RELAY TRM BLK 72VDC 1U 3A BAHN
859-398 RELAY 1CHANGEOVER, 24VDC,   +/-40% INA
859-399 RELAY 1CHANGEOVER,110VDC,+/-40%   1U3A
