QuickScan I Lite QW2100

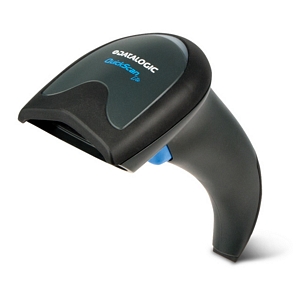

The QuickScan™ reader series is Datalogic ADC’s value line of general purpose handheld data collection products. The QuickScan tn_PLP-QW2100-BK-LFLite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which are common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

The QW2100 imager is small and lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a ‘tiltable head’ for various angle settings.

The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. Datalogic’s Aladdin™ configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Features

  • Wide scan angle
  • Laser-like thinner and extended scan line
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Water and Particulate Sealing Rating: IP42
  • Drop Resistance to 1.5 m / 5.0 ft
  • Uses the same cables and power supplies as the current QuickScan products
  • Bulk packaging available (10 scanners per box)
  • USB Certified Kits available

QuickScan Lite QW2100 Models

QuickScan Lite Imager, Black, KBW/RS-232 Interface QW2170-BK
QuickScan Lite Imager, Black, KBW/RS-232 Interface (Sold in increments of 10.) QW2170-BK-10
QuickScan Lite Imager, Black, KBW/RS-232 Interface w/ KBW Cable (90G001010) QW2170-BKK3
QuickScan Lite Imager, Black, KBW/RS-232 Interface w/ KBW Cable (90G001010) Sold in increments of 10. QW2170-BKK3-10
QuickScan Lite Imager, Black, KBW/RS-232 Interface w/ KBW Cable (90G001010) and Stand (STD-QW20-BK) QW2170-BKK3S
QuickScan Lite Imager, Black, KBW/RS-232 Interface w/ KBW Cable (90G001010) and Stand (STD-QW20-BK) Sold in increments of 10. QW2170-BKK3S-10
QuickScan Lite Imager, Black, USB Interface QW2120-BK
QuickScan Lite Imager, Black, USB Interface (Sold in increments of 10.) QW2120-BK-10
QuickScan Lite Imager, Black, USB Interface w/ Enhanced USB Cable (90A052065) and Stand (STD-QW20-BK) Sold in increments of 10. QW2120-BKK12S-10
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052043) and Stand (STD-QW20-BK) QW2120-BKK11S
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052044) QW2120-BKK1
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052044) Sold in increments of 10. QW2120-BKK1-10
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052044) and Stand (STD-QW20-BK) QW2120-BKK1S
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052044) and Stand (STD-QW20-BK) Sold in increments of 10. QW2120-BKK1S-10
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052065) QW2120-BKK12
QuickScan Lite Imager, Black, USB Interface w/ USB Cable (90A052065) and Stand (STD-QW20-BK) QW2120-BKK12S
QuickScan Lite Imager, Black, USB Interface with USB Cable (90A052043) QW2120-BKK11
